Sarbari I

Sarbari I SHP

Sarbari - I Small Hydro-Power Plant is a run of the River project on Sarbari river, a tributary of beas. The project is located about 14 Kms from Kullu town of Himachal Pradesh

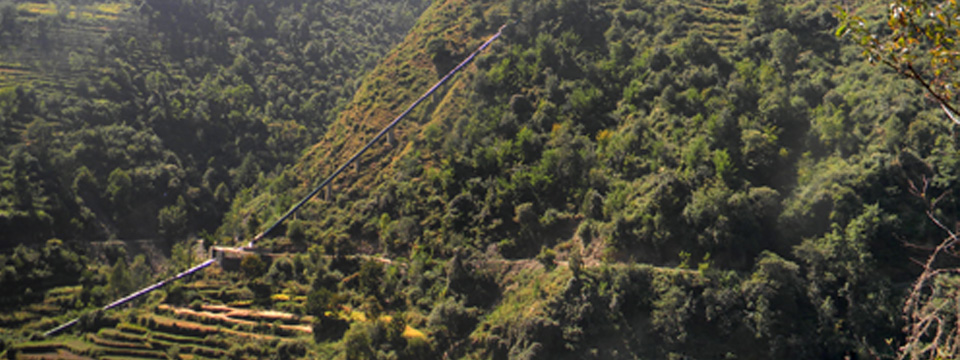

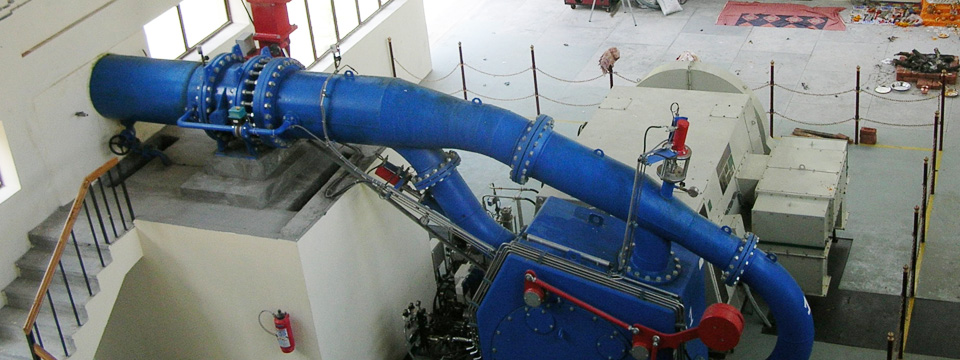

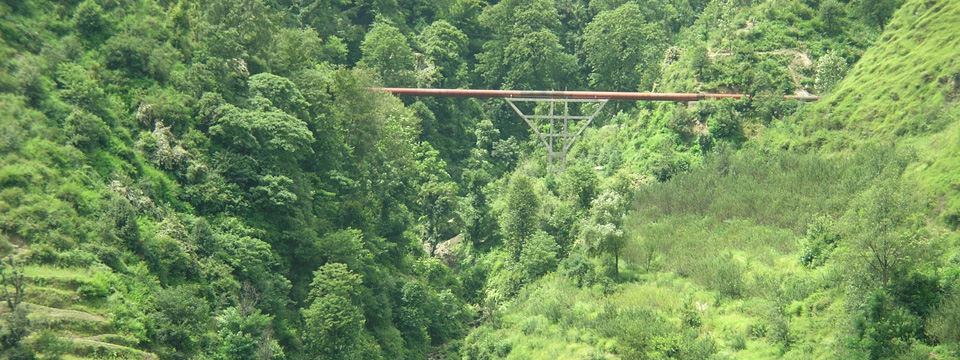

The salient components of the project are trench weir, 100 meter de-silting tank, 2.5 Km long tunnel, 650 meter penstock, 2 X 2.5 MW Pelton turbines with asociated equipment.

The power is evacuated on a 33KV overhead line and supplied to Himachal Pradesh State Electricity Board.The commercial operation of the plant commenced on 17th May 2008.

Click Here to View
Live Online Water Discharge Data for Sarbari I SHP

SAILENT FEATURES

Location	Approx. 14 Kms from Kullu
District	Kullu
Development Type	Run-off the river power project
Installed capacity	2 x 2.5 MW
River Stream	Sarvari
Weir	Trench Type
Water Conductor	2.5 Kms length
Penstock	12.5 mm diameter, 650 meter long
Turbines	2 nos Horizontal Impulse Type Pelton
Rated Discharge	3.2 cumecs
Rated Head	200 meters.
Generators	2 Nos Synchronous type
Commissioned	17th May 2008
